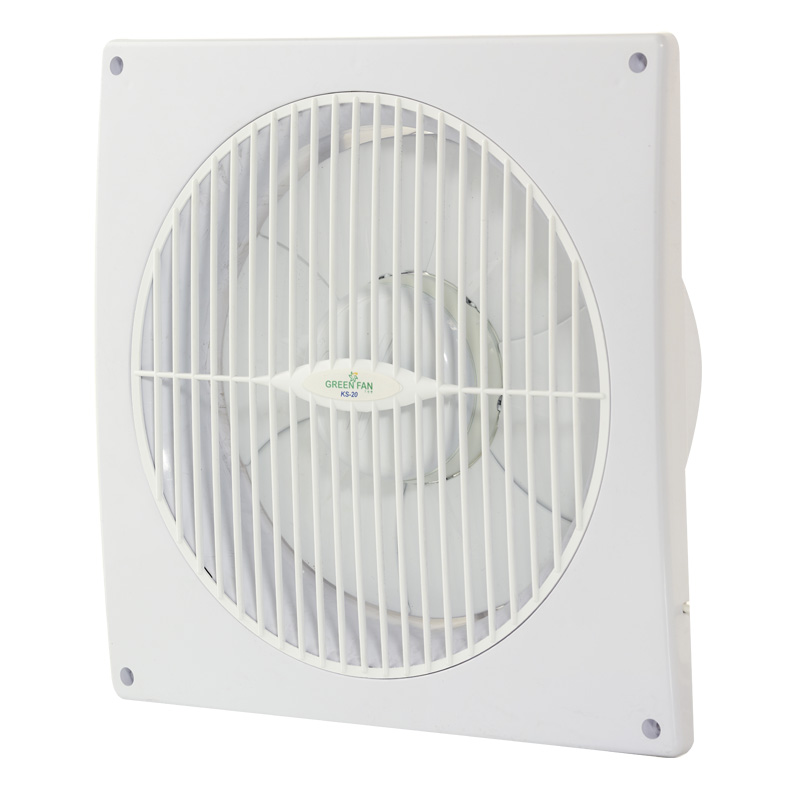

KAV-20

본문

On-off switch, anti-wind wing shutter, odor exhaust, low power consumption
Ordinary households, smoking rooms, toilets, offices, conference rooms, karaoke rooms, etc.​

MODEL : KAV-20

Specification

  • Power(V)    220
  • Current(A)    0.12
  • Input(W)    33
  • R.P.M    1,100
  • Air Flow(m 3/hr)    600
  • Fan Size    200
  • Weight(kg)    1.50

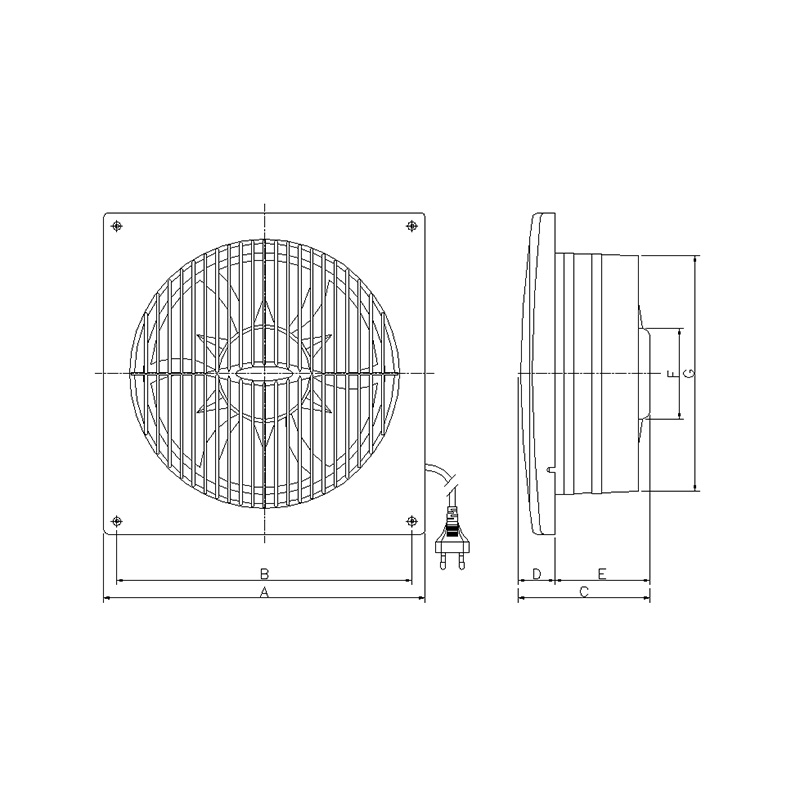

Dimension

  • A    300
  • B    270
  • C    127
  • D    27
  • E    100
  • F    Ø96
  • G    205
  • H
  • I
