productst > Ceiling Type

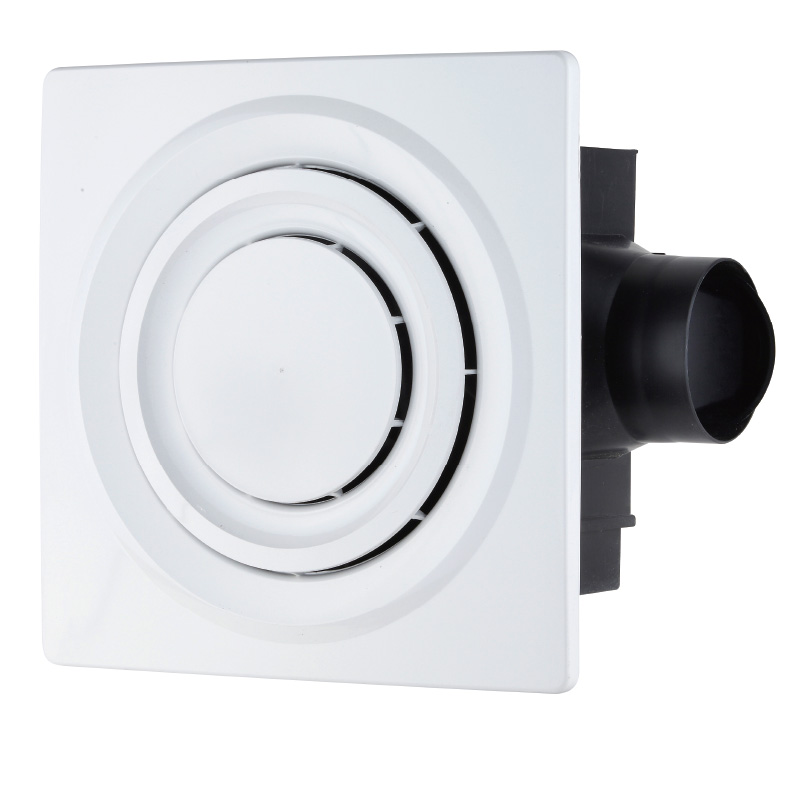

KV-15D

본문

Low noise design, high air volume, high pressure, high closed wind pressure shutter, low power consumption, high efficiency motor,
Cover can be detached

Buildings, offices, bathrooms, shopping malls, living rooms, smoking rooms, etc.​

MODEL : KV-15D

Specification

  • Power(V)    220
  • Current(A)    0.12
  • Input(W)    28
  • R.P.M    1,100
  • Air Flow(m 3/hr)    270
  • Fan Size    145
  • Weight(kg)    2.6

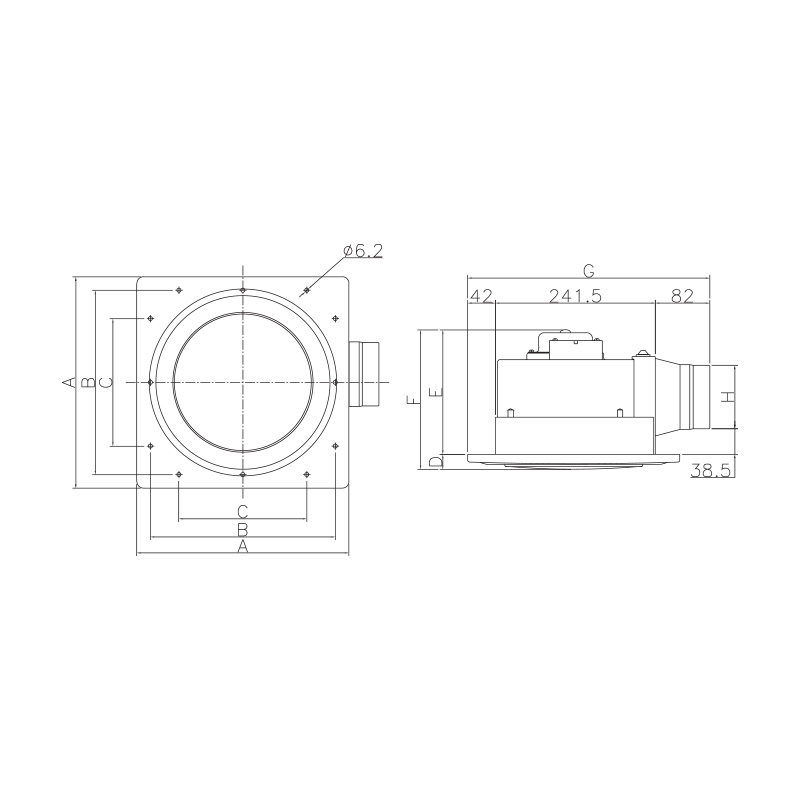

Dimension

  • A    320
  • B    279
  • C    193
  • D    23
  • E    188
  • F    211
  • G    365
  • H    Ø96
  • I
