KV-20C

본문

Low noise design, odor exhaust, low power consumption, simple design

General households, smoking rooms, toilets, offices, conference rooms, karaoke rooms, containers, etc.​

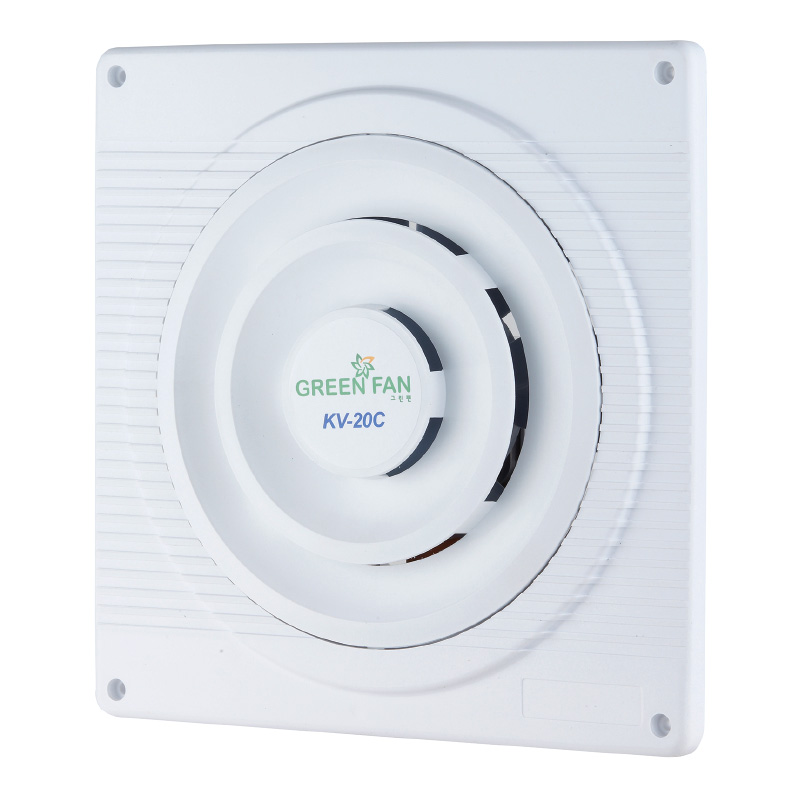

MODEL : KV-20C

Specification

  • Power(V)    220
  • Current(A)    0.18
  • Input(W)    32
  • R.P.M    1,110
  • Air Flow(m 3/hr)    580
  • Fan Size    200
  • Weight(kg)    1.58

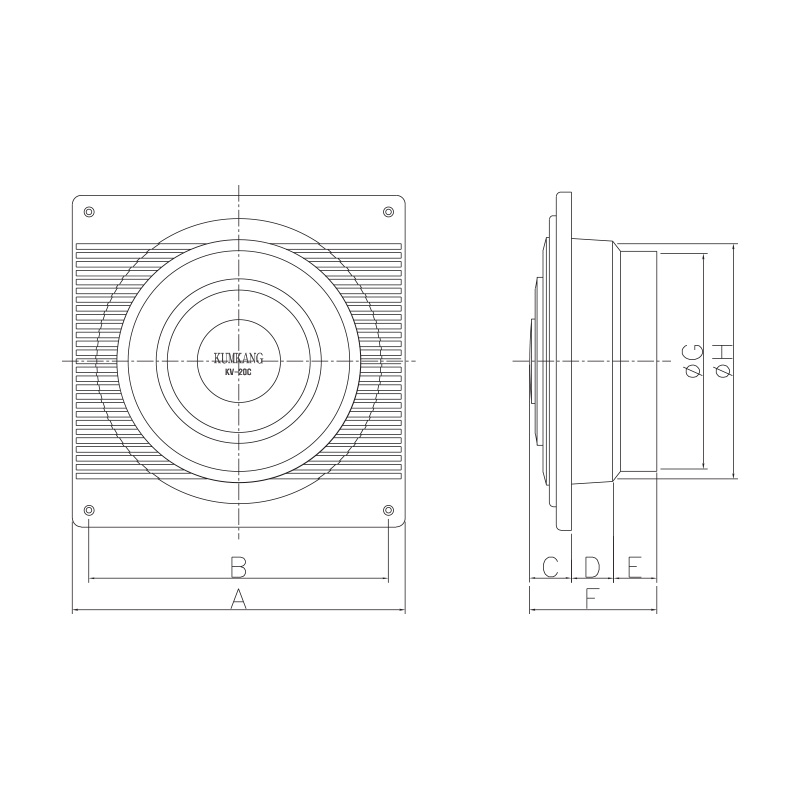

Dimension

  • A    300
  • B    270
  • C    39
  • D    36.5
  • E    39
  • F    115
  • G    Ø195
  • H    Ø213
  • I
