productst > Duct Type

KV-20

본문

Absorption and exhaust, low noise design, bathroom humidity and odor removal, low power consumption
Ordinary households, smoking rooms, toilets, offices, conference rooms, karaoke rooms, etc.​

MODEL : KV-20

Specification

  • Power(V)    220
  • Current(A)    0.197
  • Input(W)    23
  • R.P.M    1200
  • Air Flow(m 3/hr)    480
  • Fan Size    170
  • Weight(kg)    1.5

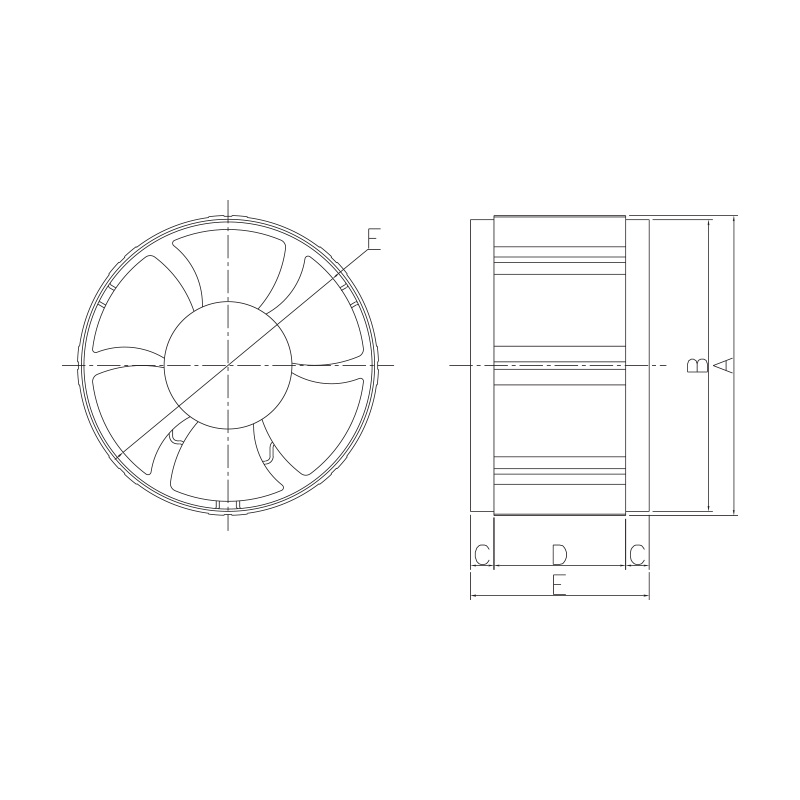

Dimension

  • A    192
  • B    190
  • C    15
  • D    84.5
  • E    114.5
  • F    Ø170
  • G
  • H
  • I
