K-50F

본문

Durability, corrosion resistance, ball bearing adoption, high efficiency wings
Suitable for factories, workshops, warehouse facilities, farms, and cattle sheds​

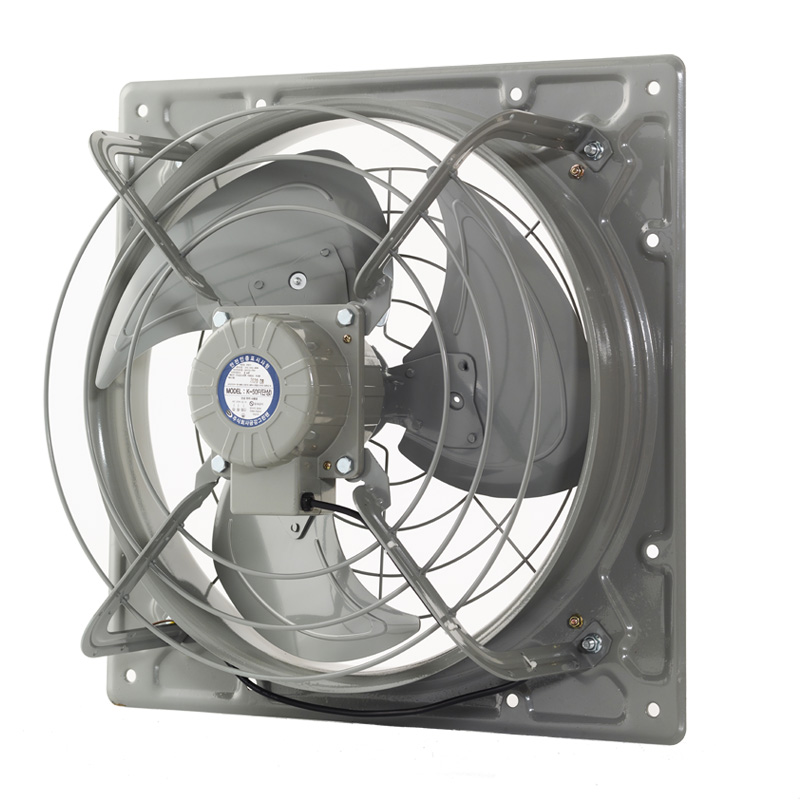

MODEL : K-50F

Specification

  • Power(V)    220
  • Current(A)    1.82
  • Input(W)    400
  • R.P.M    1,620
  • Air Flow(m 3/hr)    9,430
  • Fan Size    500
  • Weight(kg)    13.8

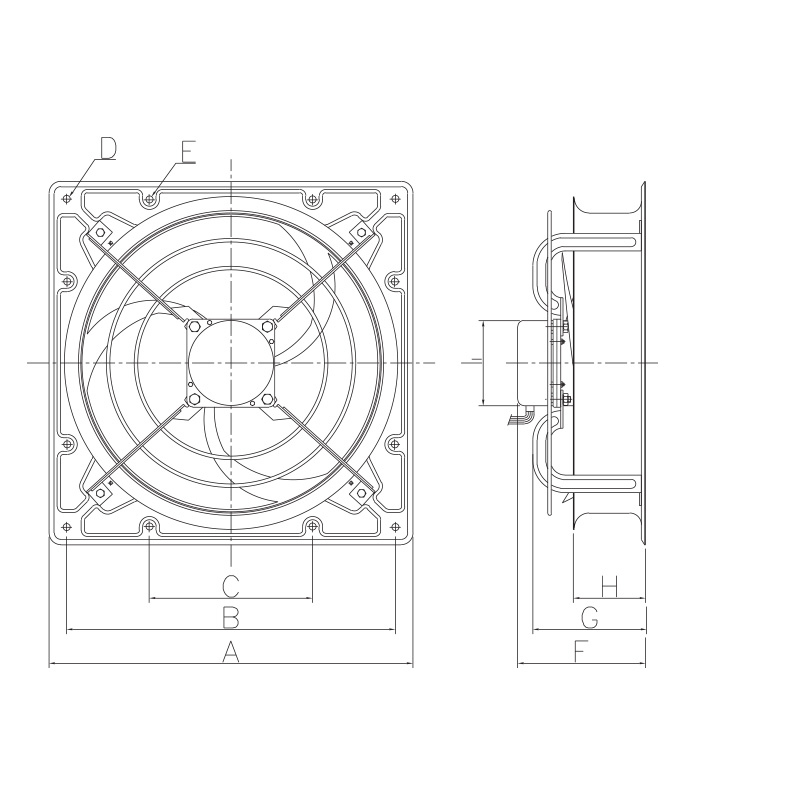

Dimension

  • A    620
  • B    560
  • C    278
  • D    Ø12
  • E    Ø12
  • F    218
  • G    192
  • H    123
  • I    Ø145
