productst > High pressure Type

K-25F

관련링크

본문

Low noise, ball bearing, high efficiency wings
Excellent corrosion resistance and durability, with long life and fewer faults​

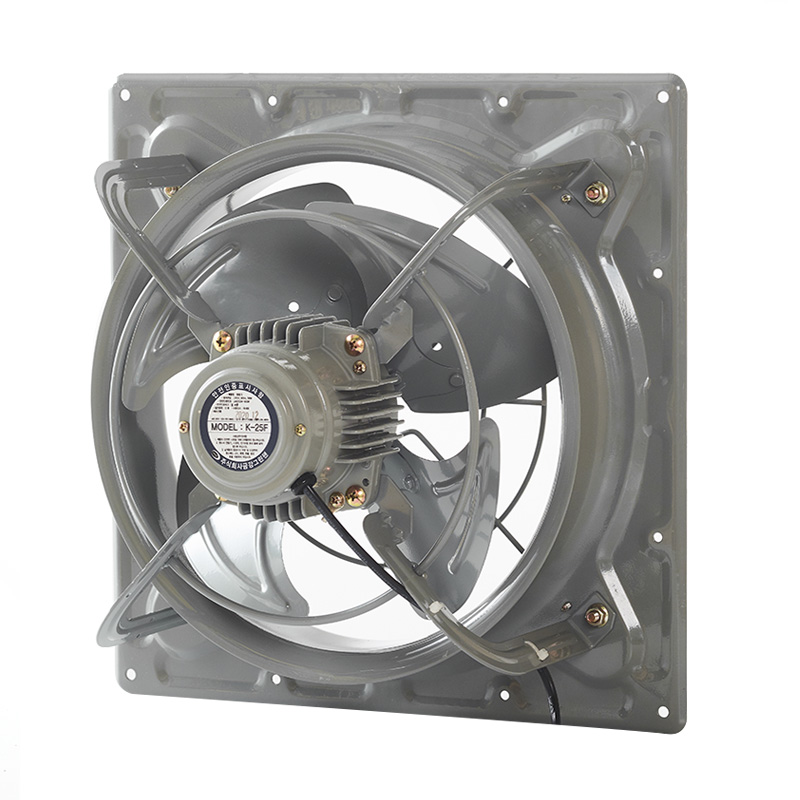

MODEL : K-25F

Specification
  • Power(V)    220
  • Current(A)    0.27
  • Input(W)    58
  • R.P.M    1,580
  • Air Flow(m 3/hr)    1,380
  • Fan Size    250
  • Weight(kg)    3.7



Dimension
  • A    350
  • B    325
  • C    140
  • D    Ø6
  • E    Ø6
  • F    190
  • G    160
  • H    73
  • I    Ø100
