KGF-3000

본문

Product Features
   - Top and bottom angle adjustment - Top and bottom height adjustment - Wind direction adjustment - Three-stage wind speed

   - Modern Sensory Design - Low Noise Powerful Motor - Durability and Corrosion Resistance Excellent Control

   - Recruitment of draft outlook

 Suitable for large spaces such as factories, offices, work sites, restaurants, livestock farms, and stores​

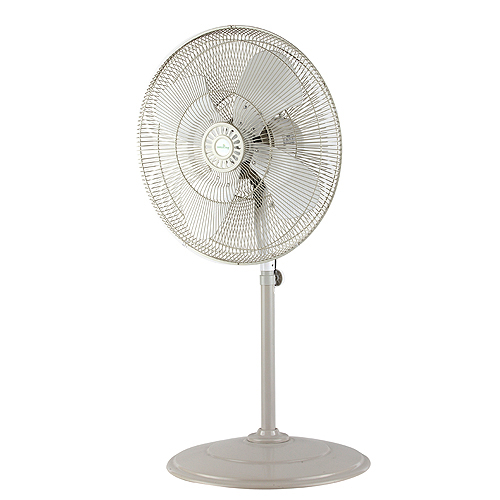

MODEL : KGF-3000

Specification

  • Power(V/Hz)    220/60
  • Pole(P)    6
  • Level    High - Middle - Low
  • Current(A)    (H)0.92 (H)0.75 (L)0.66
  • Input(W)    (H)220 (H)165 (L)142
  • R.P.M    (H)1075 (H)1000 (L)850
  • Fan Size(Cm)    75
  • Weight(kg)    14.2

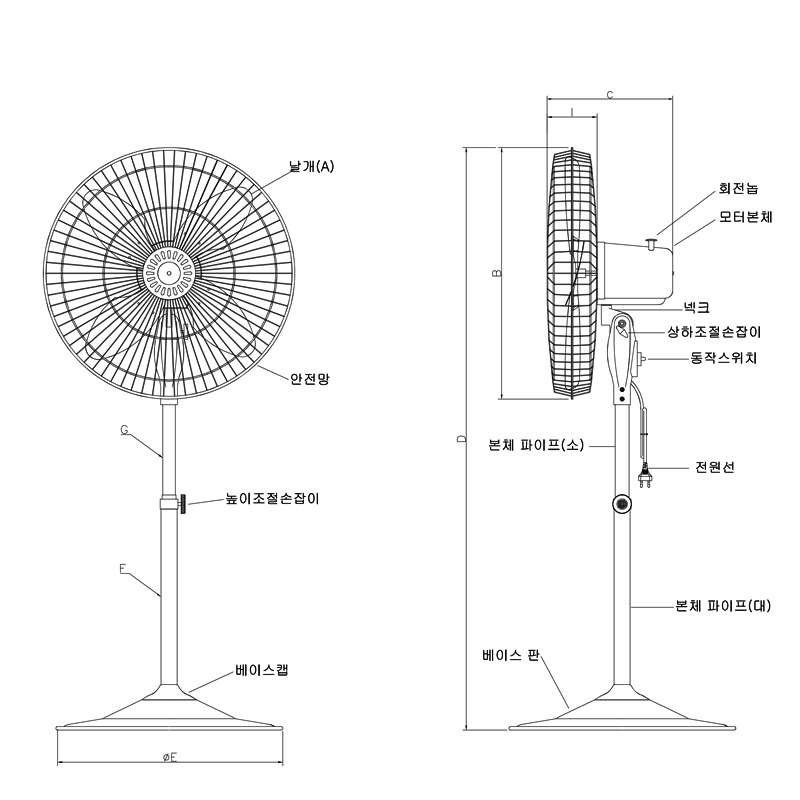

Dimension

  • A    750
  • B    835
  • C    332
  • D    저1387 고1627
  • E    ∅ 595
  • F    ∅ 42
  • G    ∅ 33
  • H    132
  • I
