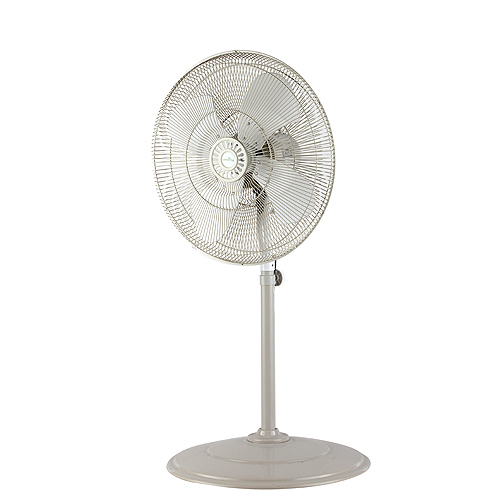

KGF-2400

본문

Product Features
   - Top and bottom angle adjustment - Top and bottom height adjustment - Wind direction adjustment - Three-stage wind speed

   - Modern Sensory Design - Low Noise Powerful Motor - Durability and Corrosion Resistance Excellent Control

   - Recruitment of draft outlook

 Suitable for large spaces such as factories, offices, work sites, restaurants, livestock farms, and stores​



MODEL : KGF-2400

Specification

  • Power(V/Hz)    220/60
  • Pole(P)    4
  • Level    High - Middle - Low
  • Current(A)    (H)1.02 (M) 0.83 (L) 0.54
  • Input(W)    (H)270 (M)180 (L) 118
  • R.P.M    (H)1240 (M)1010 (L) 700
  • Fan Size(Cm)    72
  • Weight(kg)    14.2

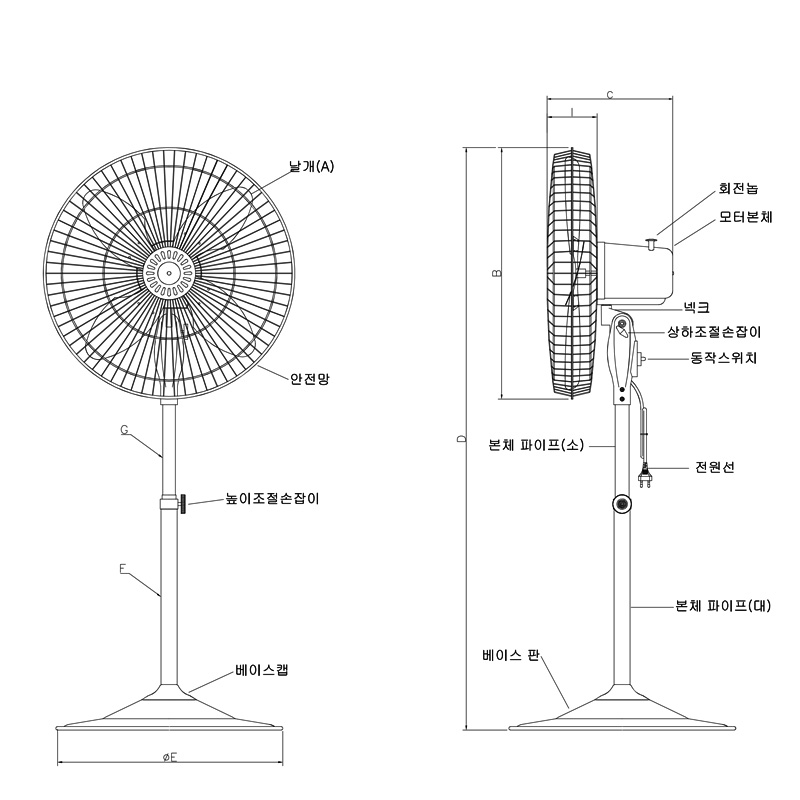

Dimension

  • A    600
  • B    665
  • C    332
  • D    저1300 고1540
  • E    ∅ 595
  • F    ∅ 42
  • G    ∅ 33
  • H    132
  • I
